The PGV2ME-32X Motor Protection Circuit Breaker is designed to protect three-phase motors against overloads, short circuits, and phase-failure conditions. Combining adjustable thermal protection and instantaneous magnetic protection in a compact device, it provides dependable motor safety while simplifying motor starter installations.
Available with adjustable current settings from 0.16A to 32A, the PGV2ME-32X allows precise protection based on the motor's full-load current. It is suitable for direct motor starting and can be integrated with AC contactors to form complete motor starter assemblies.
Key Features
- 3 Pole motor protection circuit breaker
- Adjustable current settings from 0.16A to 32A
- Thermal overload protection
- Instantaneous magnetic short-circuit protection
- Phase-failure sensitivity
- Manual ON/OFF operation with trip indication
- DIN rail or panel mounting
- Compatible with auxiliary contacts, shunt release, and undervoltage release
- Manufactured according to IEC 60947-2
Applications
- Motor starter panels
- Industrial automation systems
- Pumps and compressors
- HVAC equipment
- Conveyor systems
- Machine tools
- Manufacturing plants
- Commercial motor control panels
Available Current Ranges
- 0.16–0.25A
- 0.25–0.40A
- 0.40–0.63A
- 0.63–1A
- 1–1.6A
- 1.6–2.5A
- 2.5–4A

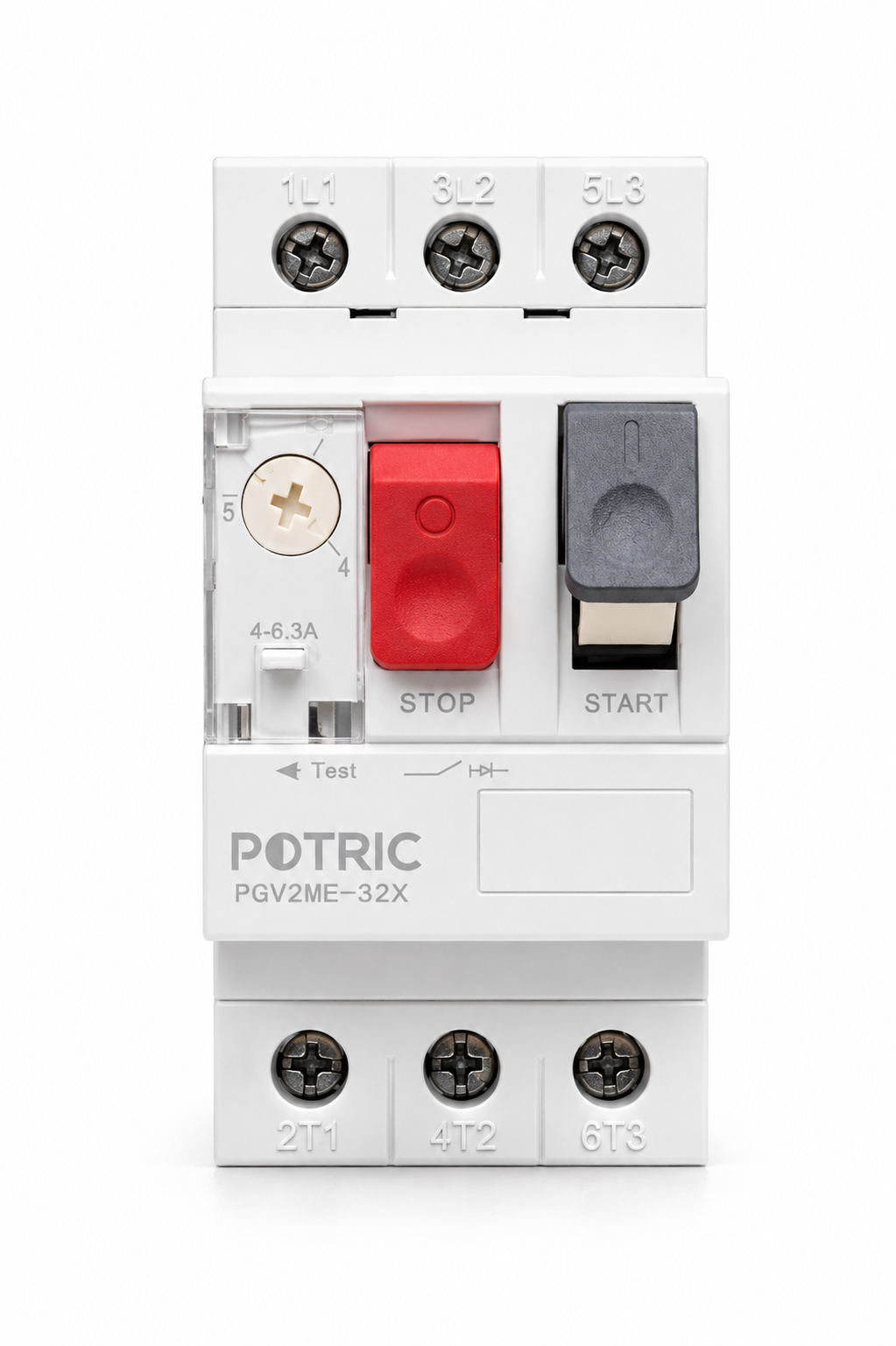

- 4–6.3A

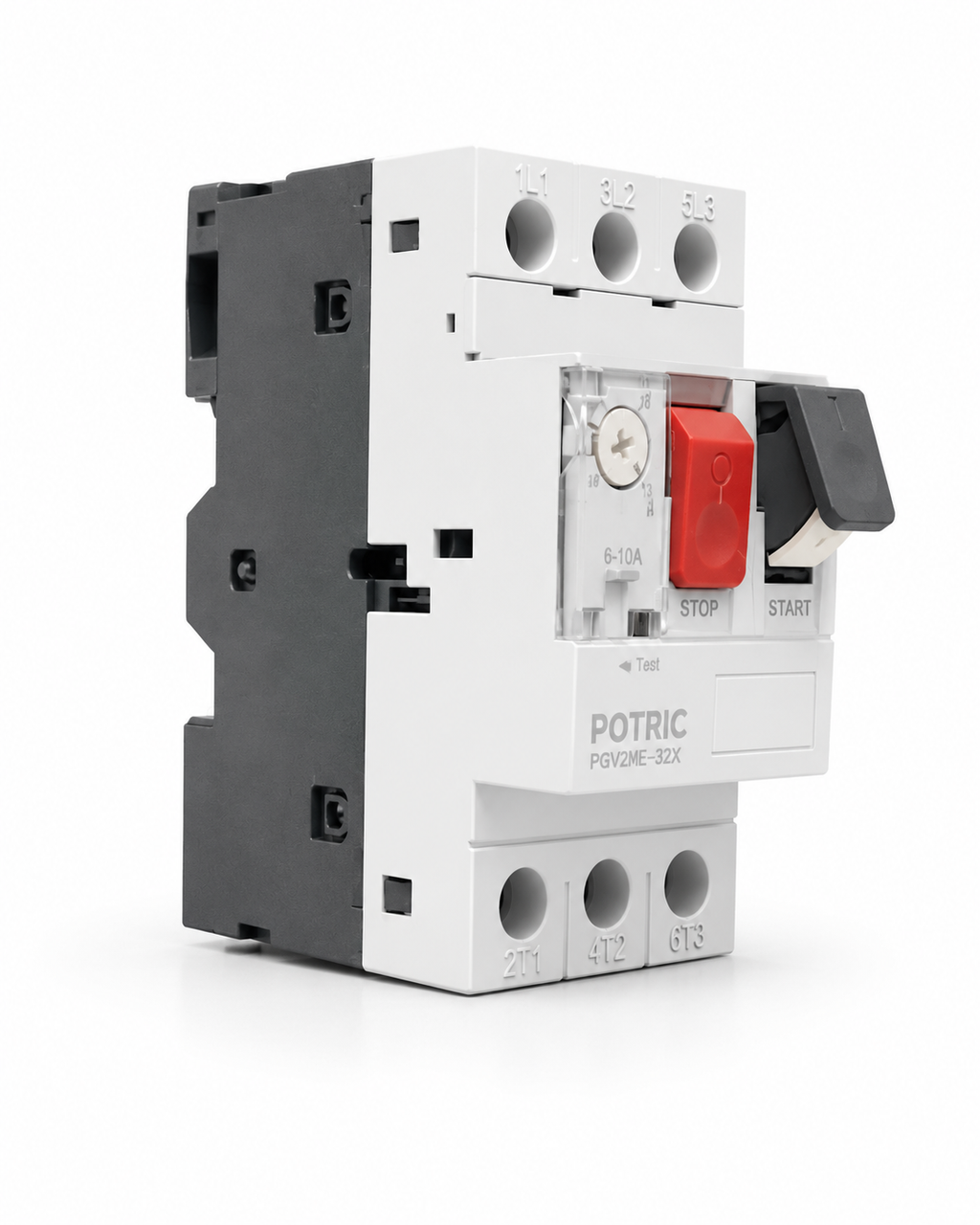

- 6–10A
- 9–14A
- 13–18A

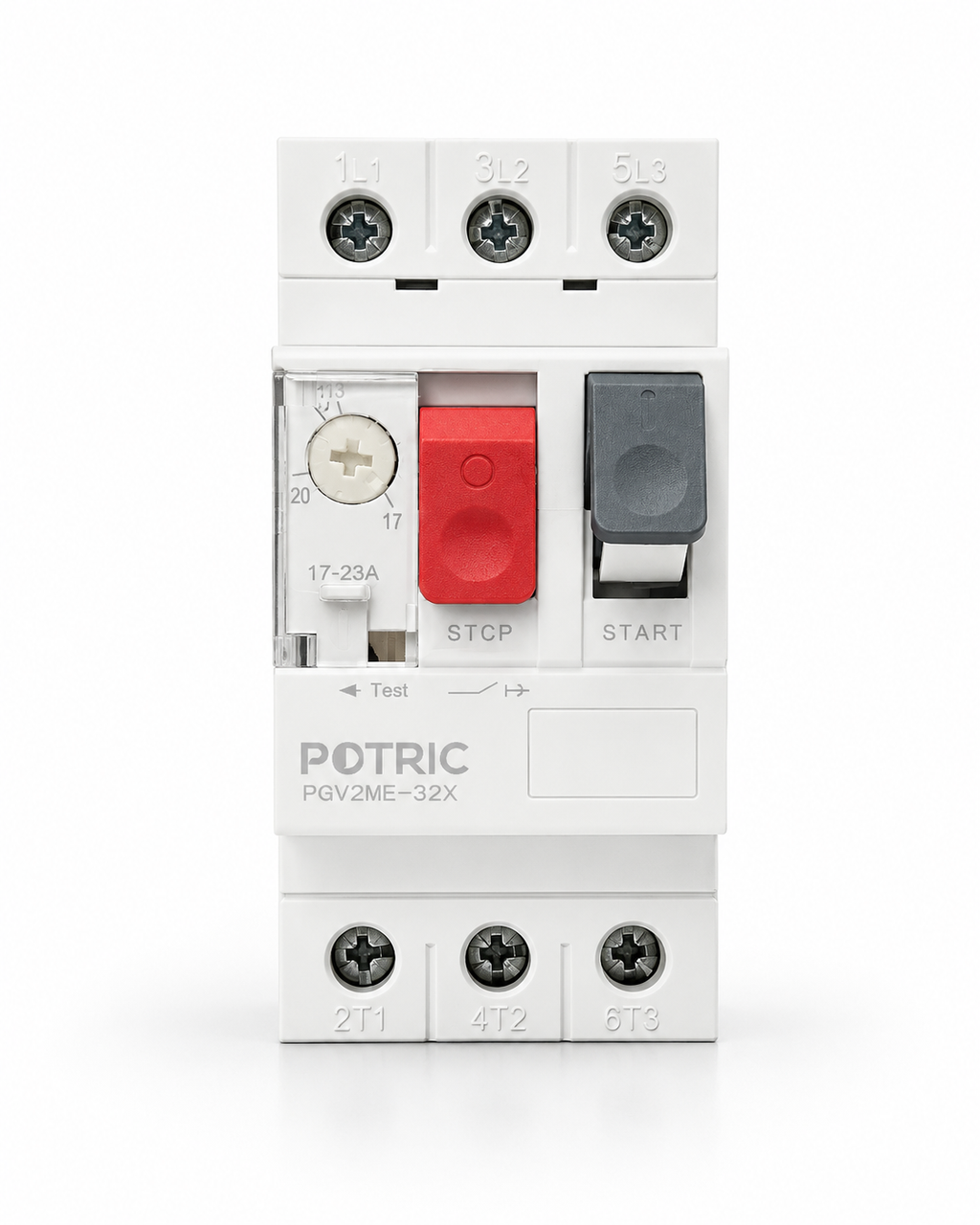

- 17–23A
- 24–32A
