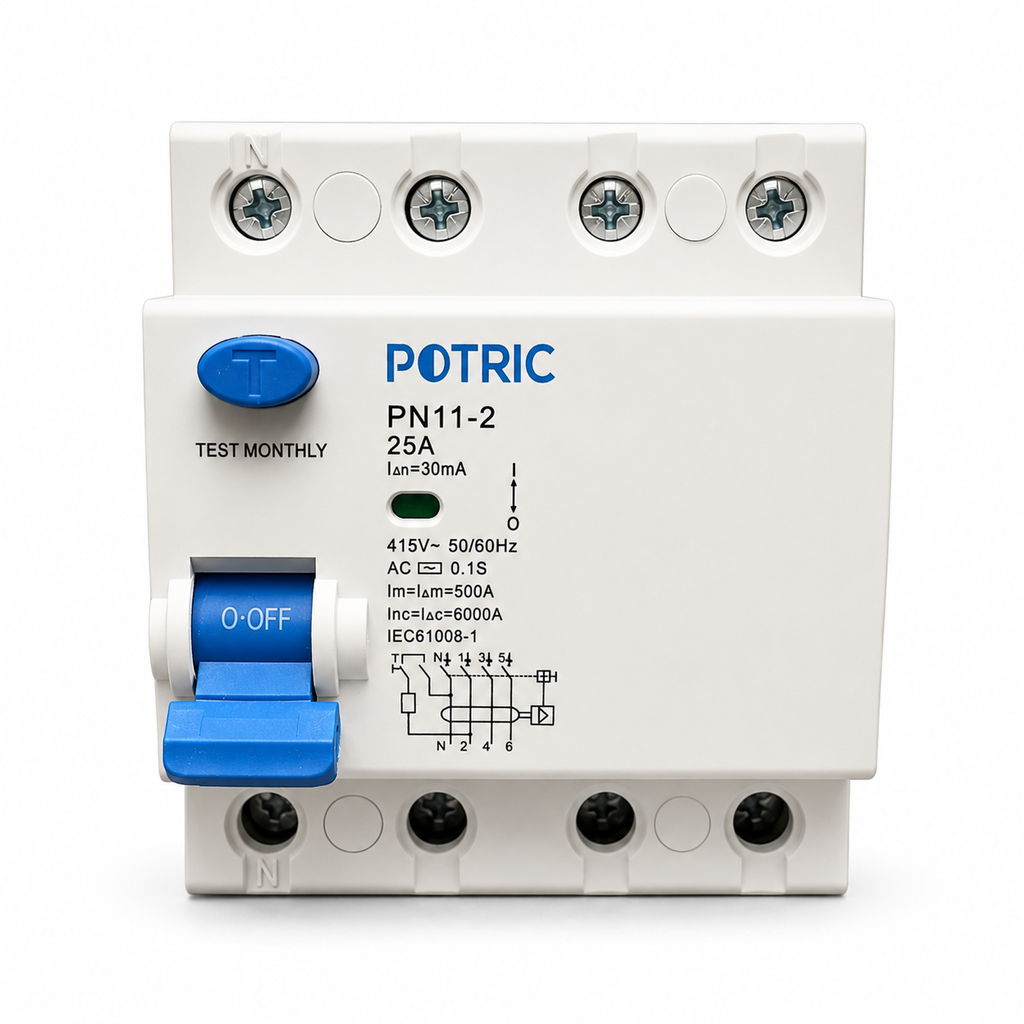

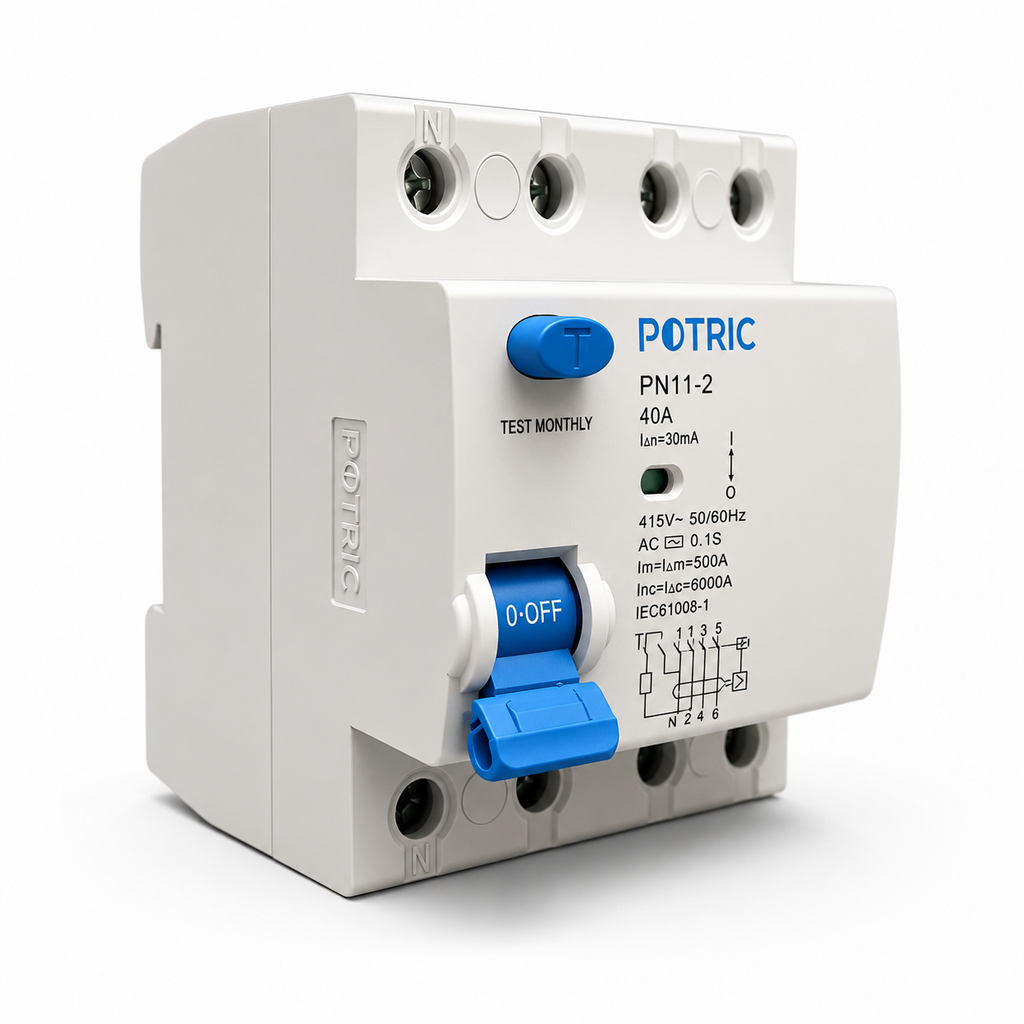

PN11 RCBO, 4 Pole, 30mA, 240V, Residual Current & Overcurrent Protection

PN11 RCBO, 4 Pole, 30mA, 240V, Residual Current & Overcurrent Protection

25A
LE 0.00
Sale price  LE 0.00 Regular price
Skip to product information
PN11 RCBO, 4 Pole, 30mA, 240V, Residual Current & Overcurrent Protection
1/3
Amperage
  • PN11 4P RCBO provides combined protection against earth leakage, overload, and short circuits in three-phase electrical systems. Designed for reliable safety in residential, commercial, and industrial applications.

Specifications

Series PN11
Product Type RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
Number of Poles 4P
Rated Voltage (Ue) 240/415V AC
Rated Residual Operating Current (IΔn) 30mA
Frequency 50/60 Hz
Protection Type Earth Leakage + Overload + Short Circuit
Breaking Capacity Model dependent
Mounting DIN Rail
Standard Compliance IEC / EN standards
Application Residential / Commercial / Industrial
Operating Temperature -5°C to +40°C
